Maintenance Methods for Universal Joint Couplings

来源：https://www.timothyholding.com作者：Timothy Couplings网址：https://www.timothyholding.com/Maintenance-Methods-for-Universal-Joint-Couplings.html

Maintenance Methods for Universal Joint Couplings

Universal joint couplings are widely used in various industries including metallurgical machinery, heavy machinery, petroleum machinery, construction machinery, lifting and transportation equipment, railway vehicles, light industrial machinery, precision machinery, and control systems for transmitting torque in mechanical shaft systems.

Assembly Techniques:

1.Preparation:

oRemove all burrs and clean all components thoroughly before assembly.

2.Alignment:

oEnsure the bearing hole centerlines of the two intermediate welded yokes are on the same plane during assembly, with a maximum deviation not exceeding 1°.

oThe spline section should slide smoothly, and the joint should rotate freely.

3.Surface Treatment:

oClean all surfaces.

oApply anti-rust grease to the flange end faces and keyways.

oApply one coat of anti-rust primer to the remaining surfaces, followed by spray painting (brushing is not recommended).

Maintenance Methods:

1.Regular Lubrication:

oStandard conditions: Lubricate weekly.

oHigh-temperature conditions: Lubricate daily.

oUse recommended lubricants suitable for the operating environment.

2.Extended Service Life:

oRotate the cross shaft by 180° during each disassembly to ensure alternating use of the cross shaft journals, promoting even wear distribution.

Structural Varieties:

Universal joint couplings are available in multiple structural types, with the key features being:

•Large angular compensation capability

•Compact design

•High transmission efficiency

Common types include:

1.Cross Shaft Type (Most commonly used)

2.Ball Cage Type

3.Ball Fork Type

4.Lug Type

5.Ball Pin Type

6.Ball Joint Type

7.Ball Joint Plunger Type

8.Three-Pin Type

9.Three-Arm Type

10.Three-Ball Pin Type

11.Hinged Lever Type

Each type is categorized into heavy-duty, medium-duty, light-duty, and small-duty based on the torque transmission requirements.

Key Maintenance Points:

•Inspection Frequency: Monthly for standard applications, weekly for high-load or high-speed operations

•Lubricant Selection: Use high-temperature grease for elevated temperature environments

•Wear Monitoring: Check for play or backlash during routine maintenance

•Alignment Verification: Confirm proper alignment during seasonal maintenance

Proper maintenance following these guidelines will ensure optimal performance and extended service life of universal joint couplings in various industrial applications.

https://www.timothyholding.com/Maintenance-Methods-for-Universal-Joint-Couplings.html

Universal Joint Couplings as Critical Mechanical Transmission Components

 Universal Joint Couplings as Critical　Mechanical Transmission Components

Fundamental Role in Power Transmission

Universal joint couplings serve asessential components in mechanical power transmission systems, widely employedin:

• Automotive     systems

• Lifting     and transportation equipment

• Construction     machinery

• Industrial     machinery



Common Types of Constant Velocity Joints

1. Rzeppa (Ball-type) Joints

2. Double Cardan Joints

3. Cross-slider Couplings

4. Disc-type Couplings

These are particularly suitable forconnecting:

• Intersecting     shafts

• Parallel     shafts

• Providing     constant velocity transmission

Advanced Spatial Mechanism Applications

Recent research has developed specializeduniversal joint designs for:

• Direct     connection of spatial intersecting shafts

• Large-angle     intersecting shaft connections (with wide variable range)

• Simplified     manufacturing with fewer components

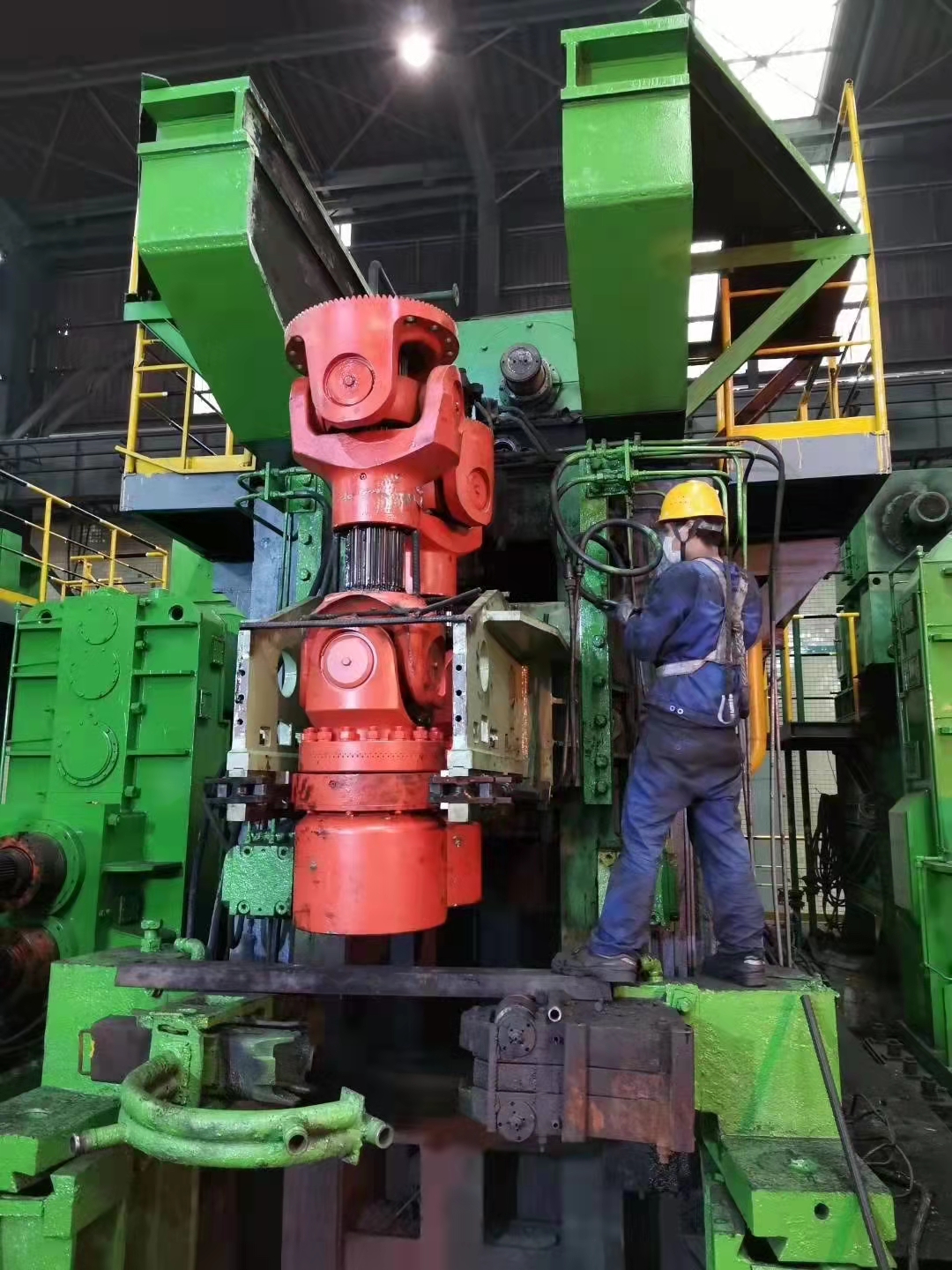

Critical Application Case: Tube RollingMills

In rolling mill main drive systemsconsisting of:

• Main     motor

• Reducer

• Connecting     shaft

• Universal     joint coupling

The universal joint coupling represents themost vulnerable mechanical component, where traditional design approaches facedlimitations:

Traditional Design Limitations

1. Engineering Mechanics     Methods

• Limited accuracy

• Poor reliability

2. Empirical Formula Methods

• Based on experimental data

• Required large safety factors

• Resulted in oversizing and higher costs

Modern Computational Analysis Advancements

With computer technology development,numerical analysis methods have revolutionized design:

Finite Element Method (FEM) Advantages

• Powerful     computational mathematics approach

• Widely     adopted in metallurgical equipment design

• Particularly     effective for complex components like universal joints

• Provides     practical, reliable and convenient analysis

Modeling Optimization Techniques

Key simplifications in FEM modeling:

1. Focus on Critical     Components

• Primarily analyzing the yoke head

• Simplified modeling of roll-end components

2. Contact Simulation

• Independent modeling of:

• Yoke

• Jaw

• Roll-end flange

• Creation of contact pairs to simulate force transmission

3. Reasonable Simplifications

• Ignoring non-load-bearing bolts

• Omitting minor fillets and rounds

• Eliminating rigid body displacement

Performance Enhancement Strategies

1. Precision Manufacturing

• Improved component geometry

• Enhanced surface finishes

2. Material Optimization

• Advanced alloy selection

• Heat treatment processes

3. Maintenance Considerations

• Lubrication system design

• Wear monitoring techniques
